FT Thermistor
FT thermistors are unlike any conventional thermistors, featuring fast response time, high heat resistance and reliability, realized through ultra-miniaturization. SEMITEC’S FT thermistors are fully compliant with RoHS DIRECTIVE2011/65/EU.
- A thin resistive film (typically tens to hundreds of nanometers thick)
- High accuracy and good repeatability.
- Exhibits good long-term stability.
- Suitable for precision temperature measurement.
Application
Office automation equipment, measuring instruments, medical equipment, security, LCDs, laser diode modules

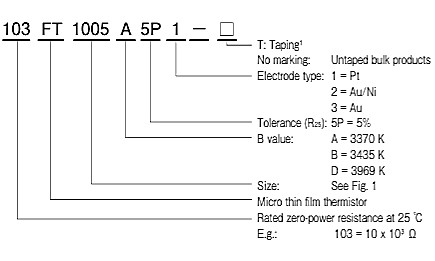

Product number Explination

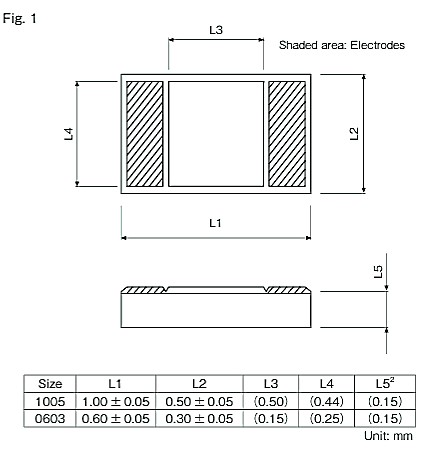

Dimension
Rating
| Product Number | R25*3 | R25 Tolerance |
B-value*4 | Dissipation factor ｍW/℃ |
Thermal time constant s*5 |
Rated power at 25℃ mW |
Operating Temperature range ℃ | ||
|---|---|---|---|---|---|---|---|---|---|
| 1:Pt | 2:Au/Ni | 3:Au | |||||||
| 103FT1005A5P | 10.00kΩ | ±5%*6 | 3370K±1% | approx. 0.3 | approx. 1.0 | 1.5 | -40 〜 +250 (350) |
-40 〜 +125 | -40 〜 +250 |
| 103FT1005B5P | 10.0kΩ | 3435K±1% | |||||||
| 103FT1005D5P | 10.0kΩ | 3969K±1% | |||||||
| 503FT1005A5P | 50.0kΩ | 3370K±1% | |||||||
| 503FT1005B5P | 50.0kΩ | 3435K±1% | |||||||
| 364FT1005A5P | 360.0kΩ | 3370K±1% | |||||||
| 364FT0603A5P | 360.0kΩ | 3370K±1% | approx. 0.2 | approx. 0.5 | 1.0 | ||||
*3. Rated zero-power resistance at 25 ℃
*4: B value calculated from rated zero-power resistance at 25 ℃ and 85 ℃
*5. Time required to reach 63.2% of temperature difference. Measured with sensor suspended in mid-air.
*6. If your application requires other tolerance values please contact SEMITEC sales staff.
