KT Thermistor
The KT series SMD thermistor features high accuracy with tight resistance and B-value tolerances of ± 1%, high performance, high reliability and complies with EIAJ standards
- Very tight resistance tolerance of ±1% ensures precise temperature measurement.
- Stable operation over time and under varying environmental conditions
- Long-term stability even under thermal cycling.
Application
Office automation equipment, Communication equipment, IT equipment, Mobile devices, Battery packs, LCDs, Hybrid ICs, AV equipment, PCB Boards

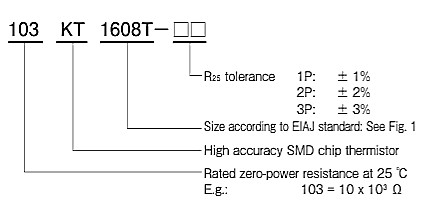

Product number Explination

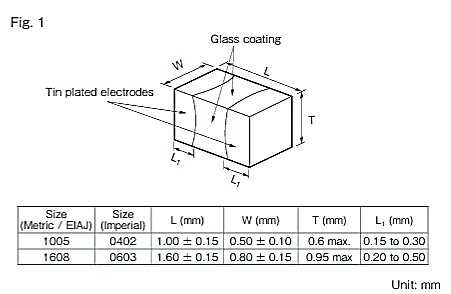

Dimension
Rating
| Part No. | R25*1 | R25tolerance | B-value*2 | Dissipation factor (ｍW/℃) |
Thermal time constant (s)*3 | Rated power at 25℃(mW) |
Operating Temperature range (℃) |
|---|---|---|---|---|---|---|---|
| 103KT1608T |
10KΩ | ±1% ±2% ±3% |
3435 K ± 1% | approx. 0.9 | approx. 5 | 4.5 | -40 to +125 |
| 503KT10608T | 50kΩ | 4055 K ± 1% | |||||
| 104KT1608T | 100kΩ | 4390 K ± 1% | |||||
| 103KT1005T | 10kΩ | 3435 K ± 1% | approx. 0.7 | approx. 2.2 | 3.5 |
* 1. Rated zero-power resistance at 25 ℃
* 2: B value calculated from rated zero-power resistance at 25 ℃ and 85 ℃
* 3: Time required to reach 63.2% of temperature difference. Measured with sensor suspended in mid-air.
