Automotive Coolant Temperature Sensor

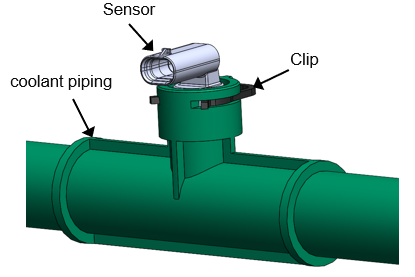

EDesigned for fast and easy installation on coolant piping, this high-response sensor delivers precise temperature measurements by directly exposing the sensor tip to the coolant flow.
Its compact diameter and thermally optimized components enable rapid detection of even the smallest temperature changes, ensuring dependable performance in demanding automotive conditions.
- Quick and Easy Attachment
- High-Response Temperature Measurement
- Compact Design with Excellent Thermal Conductivity
- Reliable Performance in Demanding Environments
Application

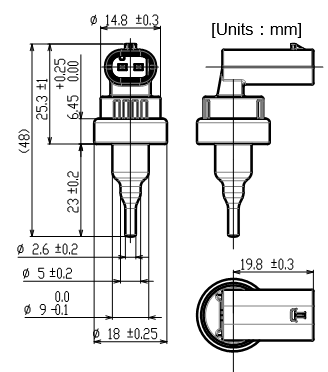

Dimension
Rating
| Item | Details |
|---|---|
| Electrical characteristics | Resistance at 25℃ : 5kΩ±2% B constant (B25/85) : 3964±2% |
| Operating temperature | -40℃～150℃ |
| Thermal time constant | 3 seconds or less |
| Installation method | Snap Fit Design (Seal with O-ring and secure with clip) |
